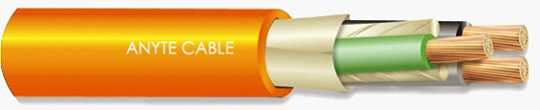

H07RN-F Rubber Cable
Description
H07RN-F series rubber cables are usually applied to heavy equipment, such as engine, large tools, farm machine and building equipment. This rubber coated cable can withstand great stress. It can be installed in dry or wet rooms as well as in wet or outdoor industrial environments. Rubber cable can be used on plaster, temporary buildings and residential camps. This cable is also suitable to be laid directly in machines, such as elevators and cranes. Rubber cables can be used in fixed installation and protection of pipeline and equipment. This wire can also be used for connecting motors.
Properties
1. Rubber cable is flame-retardant, UV resistant, and ozone-resistant.
2. The small diameter of the Rubber Coated Cable saves space for installation.
3. This rubber cable has no hazardous materials. It complies with ROHS standard.
4. The product is manufactured according to the low-voltage 73/23/EEC directive (CE marking directive) and its quality meets CE / TUV / VDE standards.
Main Components
1. Conductor of rubber cable is stranded of fine copper wires (class 6). It complies with VDE0295/IEC228 standard.
2. Cores insulation is made of rubber. The insulation accords with DIN VDE 0281 standards (color can be customized).
3. Jacket of rubber cable is also made of rubber (color can be customized).
General Parameter of H07RN-F Series Rubber Cables
| Operating Voltage | 450/750V |
| Insulation Resistance | 1GOhm × cm |
| Minimum Bend Radius | 6 × Cable Diameter |
| Operating Temperature Range | -30 ° C to +60 ° C |
Specification
| Part No. | Cores and Cross Section Area (mm²) | Cable O.D. (mm) | Copper Weight (kg/ km) | Cable Weight (kg / km) |
| 006HN00115 | 1X1.5 | 7.1 | 14.4 | 59.0 |
| 006HN00125 | 1X2.5 | 7.9 | 24.0 | 74.0 |
| 006HN00104 | 1 X 4 | 9.0 | 60.0 | 99.0 |
| 006HN00106 | 1 X 6 | 11.0 | 58.0 | 129.0 |
| 006HN00110 | 1.X10 | 12.5 | 96.0 | 200.0 |
| 006HN00116 | 1 X 16.0 | 14.5 | 154.0 | 279.0 |
| 006HN00125 | 1 X 25.0 | 16.5 | 240.0 | 396.0 |
| 006HN001135 | 1 X 35.0 | 18.5 | 336.0 | 540.0 |
| 006HN001150 | 1X 50.0 | 21.0 | 480.0 | 719.0 |
| 006HN001170 | 1 X 70.0 | 23.5 | 672.0 | 947.0 |
| 006HN00195 | 1 X 95.0 | 26.0 | 912.0 | 1230.0 |
| 006HN01120 | 1X 120.0 | 28.6 | 1152.0 | 1520.0 |
| 006HN01150 | 1 X 150 | 31.5 | 1440.0 | 1887.0 |
| 006HN01185 | 1 X 185 | 34.5 | 1776.0 | 2300.0 |
| 006HN01240 | 1 X 240 | 38.3 | 2304.0 | 2960.0 |
| 006HN01300 | 1X 300 | 41.5 | 2880.0 | 3585.0 |
| 006HN00201 | 2X1 | 10.5 | 19.0 | 89.0 |
| 006HN00301 | 3G1 | 11.5 | 29.0 | 111.0 |
| 006HN00401 | 4 G1 | 12.5 | 38.0 | 146.0 |
| 006HN00101 | 5 G1 | 13.5 | 46.0 | 192.0 |
| 006HN00215 | 2 X1.5 | 11.5 | 29 | 128.0 |
| 006HN00315 | 3 G1.5 | 12.5 | 43 | 157.0 |
| 006HN00415 | 4 G1.5 | 13.5 | 58.0 | 192.0 |
| 006HN00515 | 5 G1.5 | 15.0 | 72.0 | 238.0 |
| 006HN00715 | 7 G1.5 | 17.5 | 101.0 | 371.0 |
| 006HN01215 | 12 G1.5 | 22.4 | 173.0 | 516.0 |
| 006HN01815 | 18 G1.5 | 23 | 274.0 | 770.0 |
| 006HN01915 | 19 G1.5 | 24 | 275.0 | 788.0 |
| 006HN02415 | 24 G1.5 | 28 | 346.0 | 968.0 |
| 006HN00225 | 2 X2.5 | 13.5 | 48.0 | 177.0 |
| 006HN00325 | 3 G2.5 | 14.5 | 72.0 | 217.0 |
| 006HN00425 | 4 G2.5 | 15.5 | 96.0 | 269.0 |
| 006HN00525 | 5 G2.5 | 17.0 | 120.0 | 329.0 |
| 006HN00725 | 7 G2.5 | 19.5 | 168.0 | 499.0 |
| 006HN00825 | 8G2.5 | 20.0 | 192.0 | 590.0 |
| 006HN01225 | 12 G2.5 | 26.2 | 288.0 | 719.0 |
| 006HN01825 | 18 G2.5 | 28 | 432.0 | 1068.0 |
| 006HN01925 | 19 G2.5 | 31.2 | 456.0 | 1068.0 |
| 006HN02425 | 24 G2.5 | 36.4 | 576.0 | 1400.0 |
| 006HN00204 | 2X4 | 15.0 | 77.0 | 249.0 |
| 006HN00304 | 3 G4 | 16.2 | 115.0 | 298.0 |
| 006HN00404 | 4 G4 | 18.0 | 154.0 | 373.0 |
| 006HN00504 | 5 G4 | 19.9 | 192.0 | 466.0 |
| 006HN00206 | 2 X6 | 18.5 | 116.0 | 327.0 |
| 006HN00306 | 3 G6 | 20.0 | 173.0 | 407.0 |
| 006HN00406 | 4 G6 | 22.0 | 230.0 | 514.0 |
| 006HN00506 | 5 G6 | 24.5 | 288.0 | 640.0 |
| 006HN00210 | 2 X10 | 24.0 | 192.0 | 586.0 |
| 006HN00310 | 3 G10 | 25.5 | 288.0 | 716.0 |
| 006HN00410 | 4 G10 | 28.0 | 384.0 | 898.0 |
| 006HN00510 | 5 G10 | 30.5 | 480.0 | 1107.0 |
| 006HN00216 | 2 X16 | 27.5 | 307.0 | 810.0 |
| 006HN00316 | 3 G16 | 29.5 | 461.0 | 1008.0 |
| 006HN00416 | 4 G16 | 32.0 | 614.0 | 1253.0 |
| 006HN00516 | 5 G16 | 35.5 | 768.0 | 1564.0 |
| 006HN00225 | 2 X25 | 31.5 | 480.0 | 1157.0 |
| 006HN00325 | 3 G25 | 34.0 | 720.0 | 1451.0 |
| 006HN00425 | 4 G25 | 37.5 | 960.0 | 1846.0 |
| 006HN00525 | 5 G25 | 41.5 | 1200.0 | 2291.0 |
| 006HN00335 | 3 G35 | 38.0 | 1008.0 | 1901.0 |
| 006HN00435 | 4 G35 | 42.0 | 1344.0 | 2393.0 |
| 006HN00535 | 5 G35 | 45.8 | 1680.0 | 2684.0 |
| 006HN00350 | 3 G50 | 42.9 | 1440.0 | 2580.0 |
| 006HN00450 | 4 G50 | 47.5 | 1920.0 | 3284.0 |
| 006HN00550 | 5 G50 | 47.0 | 2400.0 | 3950.0 |
| 006HN00370 | 3 G70 | 48.3 | 2016.0 | 3386.0 |
| 006HN00470 | 4 G70 | 50.0 | 3360 | 4893.0 |
| 006HN00570 | 5 G70 | 56 | 2688.0 | 4331.0 |
| 006HN00395 | 3 G95 | 54.0 | 2736.0 | 4483.0 |
| 006HN00495 | 4 G95 | 61.0 | 3648.0 | 5712.0 |
| 006HN03120 | 3 G120 | 60.0 | 3456.0 | 5182.0 |
| 006HN04120 | 4 G120 | 66.0 | 4608.0 | 6828.0 |
| 006HN04150 | 4 G150 | 74.0 | 5760.0 | 8319.0 |
| 006HN04180 | 4 G185 | 80.0 | 7104.0 | 10062.0 |
| 006HN04240 | 4 G240 | 91.0 | 9216.0 | 13125.0 |
Note: ‘G’ means have a drain wire; ‘X’ means no drain wire
