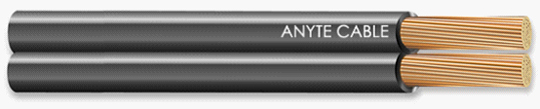

H03VVH2-F/H05VVH2-F Parallel Cable
Description
H03VVH2-F/H05VVH2-F series two core cable is flat. This type of cable is applicable as power wire in general electronic and electrical equipment. Its insulation and outer sheath are all made of special PVC mixture. Conductor of this two core cable is made of stranded fine copper wire. Cores of this cable are arranged side by side. Colors of insulation and sheaths can be customized.
Features
1. This two core cable has small diameter which saves much space for installation.
2. The PVC cable meets the strictest requirements on electrical and mechanical performance.
3. The two core cable is firm and soft. It can excellently resist grease and chemicals.
4. The product is eco-friendly and complies with ROHS directive.
5. H03VVH2-F/H05VVH2-F series two core cables meet requirements of CE / TUV / VDE certifications. These products can also be used in European market.
General Parameter
| Operating Voltage | 300/300V |
| Insulation Resistance | > 20 Mohm .cm |
| Minimum Bend Radius | 15 × cable diameter |
| Operating Temperature Range | Movable Installation: - 5 °C to +70 °C; Fixed Installation: -40 °C to +70 °C |
| Oil Resistant, Flame Retardant, and Flame Propagation | IEC 60332.1 / HD 405.2/VDE 0207-4 |
Specifications of H03VVH2-F/H05VVH2-F Series Two Core Cables
| Part No. | Cores NO. × Section (mm2) | O.D. (mm) | Weight (kg/km) | Thickness (mm) | 20℃Conductor Resistance (Ω/km) |
| 1002H03VVH2F0020005 | 2 × 0.5 | 5.1 × 3.1 | 28 | 0.6 | 39 |
| 1002H03VVH2F0020075 | 2 × 0.75 | 5.5 × 3.4 | 35 | 0.6 | 26 |
TallKee Cables is a high-tech cable manufacturer in China. Our enterprise integrates R & D, production, selling and service. Our cables are widely applied to mechanical manufacturing, automation engineering, CNC machine tool, electrical equipment, printing equipment, packaging machinery, textile machinery, industrial robot and assembly line, and so on. Two Core Cables provided by TallKee Cables are in excellent quality.
Description
H05VVH6-F/H07VVH6-F series multi core flat cables are very flexible. This type of PVC insulated and sheathed cable can be used as power wire and control cable. The cable is usually installed in cable tracks and transporters. The flat cable can be applied in buildings, transportation systems, cranes and elevators, etc.
Description
H03VH-H series flexible cable is used as power cable in general electric and electrical equipment. Conductor is made is made of stranded tinned fine copper wire. Insulation is made of special PVC mixture. Color of the insulation can be customized. The two cores in this flexible cable are arranged side by side.
