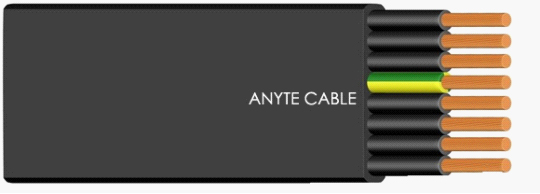

H05VVH6-F/H07VVH6-F Multi Core Flat Cable
Description
H05VVH6-F/H07VVH6-F series multi core flat cables are very flexible. This type of PVC insulated and sheathed cable can be used as power wire and control cable. The cable is usually installed in cable tracks and transporters. The flat cable can be applied in buildings, transportation systems, cranes and elevators, etc. This product is suitable for the occasions of seriously bending and reciprocating movements. This type of flat cable can withstand medium stresses.
Features
1. The flat multi core cable is designed with smaller dimensions which saves more space than round cable for installation.
2. This flat cable features smaller bend radius than round cable.
3. It becomes possible that multiple flat cables are tied together in use.
4. Cores are arranged in parallel to avoid tangling together.
5. Environment friendly materials are adopted. This product complies with ROHS directive
Main Components
1. Conductor is made of stranded tinned fine copper wire.
2. Insulation in the flat cable is made of special PVC mixture (Color can be customized).
3. Cores are arranged side by side.
4. Outer sheath is made of special PVC mixture (color can be customized).
General Parameter of H05VVH6-F/H07VVH6-F Series Multi Core Flat Cable
| Operating Voltage | 300/500V |
| Insulation Resistance | > 20 Mohm .cm |
| Minimum Bend Radius | 15 × cable diameter |
| Operating Temperature Range | Movable Installation: - 5 °C to +70 °C; Fixed Installation: -40 °C to +70 °C |
| Oil Resistant, Flame Retardant, and Flame Propagation | IEC 60332.1 / HD 405.2/VDE 0207-4 |
Specifications
| Part No. | Size (mm2) | Conductor (mm) | O.D. (mm) | Weight (kg/km) |
| 1002H05VVH6F01200075 | 12×0.75 | 24/0.21 | 34.5×4.8 | 293 |
| 1002H05VVH6F02000075 | 20×0.75 | 24/0.21 | 56.5×4.6 | 505 |
| 1002H05VVH6F020001 | 20×1.0 | 32/0.21 | 61.0×4.8 | 586 |
| 1002H05VVH6F02400075 | 24×0.75 | 24/0.21 | 61.5×5.2 | 567 |
Description
H03VH-H series flexible cable is used as power cable in general electric and electrical equipment. Conductor is made is made of stranded tinned fine copper wire. Insulation is made of special PVC mixture. Color of the insulation can be customized. The two cores in this flexible cable are arranged side by side.
Description
H05V-K/H07V-K series single core flexible cables are applicable to electronic and electrical equipment which can be exported to Europe. This insulated cable can also be the alternative cable for equipment made in Europe during maintenance, repair and operating. This flexible cable can be used as internal connecting cable in equipment. The product can also be used to connect lightings when it is under protection. The flexible cable is applied to signaling system and it can also be laid in an open type or embedded pipe.
