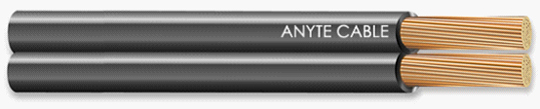

H03VH-H PVC Insulated Flexible Parallel Cable
Description
H03VH-H series flexible cable is used as power cable in general electric and electrical equipment. Conductor is made is made of stranded tinned fine copper wire. Insulation is made of special PVC mixture. Color of the insulation can be customized. The two cores in this flexible cable are arranged side by side.
Features
1. This two core cable is manufactured with environment friendly materials according to ROHS directive.
2. H03VH-H series flexible cable gets CE / TUV / VDE, so that it can also be used in European market.
General Parameter
| Operating Voltage | 300/300V |
| Insulation Resistance | > 10 Gohm .cm |
| Minimum Bend Radius | 6 × cable diameter |
| Operating Temperature Range | Movable Installation: - 5 °C to +70 °C; Fixed Installation: -40 °C to +70 °C |
| Oil Resistant, Flame Retardant, and Flame Propagation | IEC 60332.1 / HD 405.2/VDE 0207-4 |
Specifications of H03VH-H Series Flexible Cables
| Part No. | Cores NO. × Section Area mm2 | O.D. (mm) | Thickness (mm) | Weight (kg/km) | 20℃Conductor Resistance (Ω/km) |
| 1002H03VHH0020005 | 2 × 0.5 | 3.0 × 6.0 | 0.5 | 24 | 39 |
| 1002H03VHH00200075 | 2 × 0.75 | 3,2 × 6.4 | 0.5 | 29 | 26 |
TallKee Cables is a cable supplier which not only develops and manufactures high-quality products, but also provides special solutions according to your requirements and product usage. We produce great variety of cables, such as control cable, flexible cable, data cable, building wire, irrigation cable, telephone cable, automotive cable and other specialized wires, to name a few. So far our company has passed ISO9002 quality authorization and ISO14001 environmental certification. Our cables have passed certifications of CCC, CE, TUV, UL, CSA, VDE, and SAA.
Description
H05V-K/H07V-K series single core flexible cables are applicable to electronic and electrical equipment which can be exported to Europe. This insulated cable can also be the alternative cable for equipment made in Europe during maintenance, repair and operating. This flexible cable can be used as internal connecting cable in equipment. The product can also be used to connect lightings when it is under protection. The flexible cable is applied to signaling system and it can also be laid in an open type or embedded pipe.
Description
H05V2-K/H07V2-K series flexible cables are excellent heat resistant cables. This type of single core cable is suitable for internal wiring of equipment. It can also be used to connecting lightings. This flexible cable can be installed signaling system or be laid in an open or embedded casing. The product gets all certifications required by European and North American markets, so it is suitable for electrical and electronic equipment especially designed for these markets.
