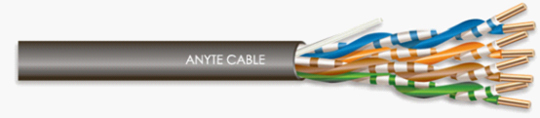

CAT 5e LAN Cable

Description
CAT 5e network cable is a twisted pair cable used in digital communications. This Ethernet cable is applied in the cabling between patch panels and communication output in cabling system in buildings. It can also be used in the cabling between patch panel and user output in residential cabling system. This CAT 5e network cable can realize 100MHz data communication. The color coding complies with ANSI/TIA/EIA-568-B standard.

Properties
1. This Cat 5e network cable meets standards of UL758, UL1581, UL444, TIA/EIA-568, CSA C22.2, ISO / IEC 11801 and other standards.
2. Transmission frequency reaches 100MHz. This cable supports duplex applications.
3. Cat 5e network cable is produced according to RoHS Environmental directive.
4. This product passes UL VW-1/CSA FT1 Vertical Wire Flame tests and CM rating.
5. The LAN cable passes flame propagation test IEC 60332 part 1 (LSOH) and part 3 (LSFROH), halogen acid gas emission test IEC 60754 - 1 and smoke emission test IEC 61 034.

Components
1. Conductor is made of single copper wire or is stranded of 7 copper wires. The copper wire is tinned.
2. Insulation in this cat 5e network cable is made of HDPE polyethylene and it meets UL444 standard.
3. Cores are twisted in pairs. There are totally four pairs.
4. Outer sheath is made of special PVC or low-smoke zero-halogen flame retardant material of a higher standard (colors can be customized).
