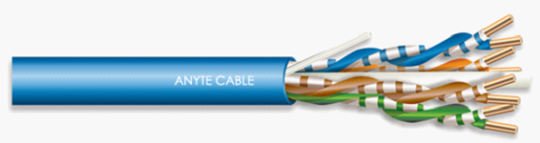

Cat 6 LAN Cable
Description
Cat 6 Ethernet cable is a standardized LAN cable for networks. This network cable can be applied in the cabling system between patch panels and communication output in building cabling system. It is also applicable in between patch panel and user output in residential cabling system. Cat 6 Ethernet cable is a twisted pair cable. The color coding in this cable meets ANSI/TIA/EIA-568-B standard. This product can realize 100MHz data communication.
Properties
1. This Cat 6 Ethernet cable meets UL758, UL1581, UL444, TIA/EIA-568, CSA C22.2, ISO / IEC 11801 and other standards.
2. Transmission frequency reaches 100MHz. This cable supports duplex applications.
3. Cat 6 Ethernet cable complies with RoHS directive.
4. This LAN cable passes UL VW-1/CSA FT1 vertical Wire Flame tests and CM rating.
5. This network cable passes flame propagation test IEC 60332 part 1 (LSOH) and part 3 (LSFROH), halogen acid gas emission test IEC 60754 - 1 and smoke emission test IEC 61 034.
Components
1. Conductor of Cat 6 Ethernet cable made of solid or seven-strand tinned copper wires.
2. Insulation is made of HDPE polyethylene and meets UL444 standard.
3. Cores are twisted in pair. There are totally four pairs.
4. Cable jacket is made of special PVC or low-smoke zero-halogen flame retardant material (colors can be customized).
General Parameter of Cat 6 Ethernet Cable
| Operating Voltage | 30V |
| Operating Temperature Range | Movable installation: - 5 °C to +80 °C; Fixed Installation: -40 °C to +80 °C |
| Flammability Rating | IEC60332-1 CM |
| DC Resistance at 20 ℃(Ω / km) | < 93.8 |
| Operating Temperature | 70 ℃ |
| Propagation Velocity | 68% |
| Impedance (ohms) | 100 ± 15 |
Specification
| Frequency (MHZ) | Special Impedance (ΩM0 | Attenuation (Db/100m) ≤ | NTXT Attenuation Db/100m ≥ | Far-end Crosstalk Attenuation (Db/100m) ≥ | Return Loss (db) ≥ |
| 1 | 100 ±15 | 1.9 | 74 | 68 | 20.0 |
| 4 | 3.7 | 65 | 56 | 23.0 | |
| 10 | 5.9 | 59 | 48 | 25.0 | |
| 16 | 7.5 | 56 | 44 | 25.0 | |
| 20 | 8.4 | 55 | 42 | 25.0 | |
| 31.25 | 10.6 | 52 | 38 | 23.6 | |
| 62.5 | 15.4 | 47 | 32 | 23.5 | |
| 100 | 19.8 | 44 | 28 | 20.1 | |
| 200 | 29.0 | 40 | 22 | 18.0 | |
| 250 | 32.8 | 38 | 20 | 17.3 |
As a high-tech network cable supplier in China, TallKee Cables has passed ISO9002 quality authorization and ISO14001 environmental certification. Our cables have passed certifications of CCC, CE, TUV, UL, CSA, VDE, and SAA. Cat 6 Ethernet cables provided by TallKee Cables have good performances.
